Valley Middle School

By Alfred Murphy Jr


Hello everyone! I am a sophomore here at New Mexico Highlands University . Majoring in CIS (Computer Info. Systems) . I am the network coordinator for Valley Middle School. Here is a little information on the network at Valley Mid. School. This school was small and a lot easier than the first network that I had to do which was Paul D. Henry Elementary School.



Information on Valley Middle School.

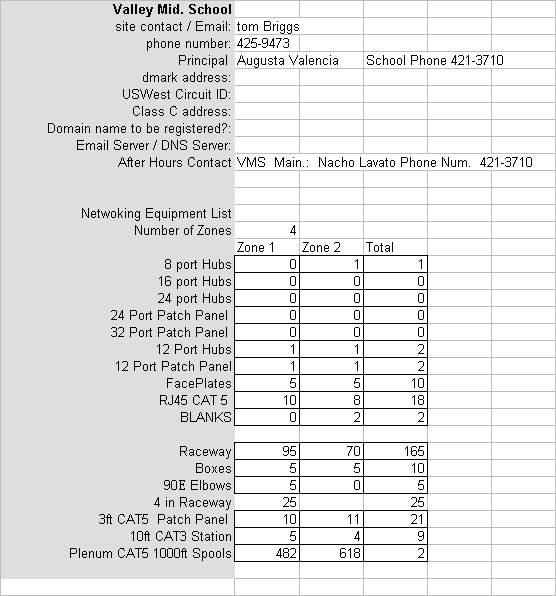

Valley Middle School information sheet.
Valley Middle School was a school that had only two zones, zones are used to divide the school into sections. By doing this we then can concentrate on these sections rather then the whole school as just one zone, this will cause less confusion and problems:and

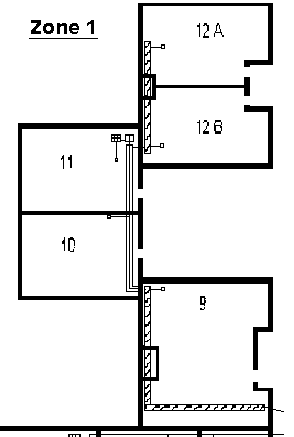

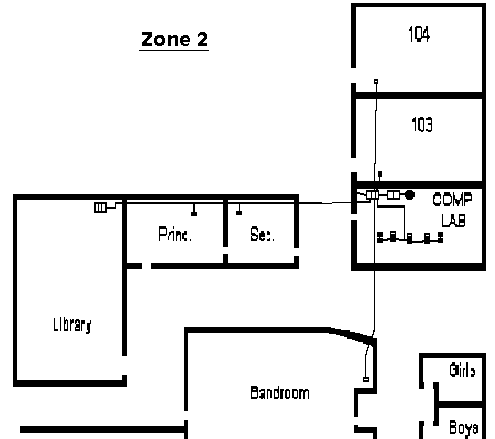

    Here are some close ups of the wiring diagrams for Zone 1 and Zone 2

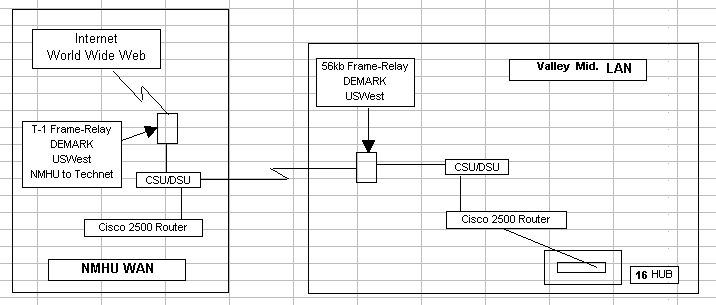

    Valley Middle School LAN Diagram ( Local Area Network).

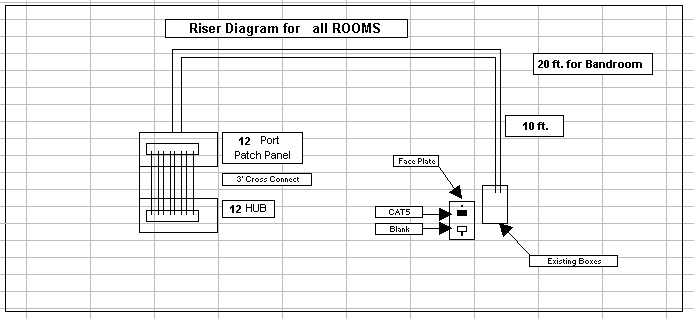

    Valley Middle School Riser Diagram.

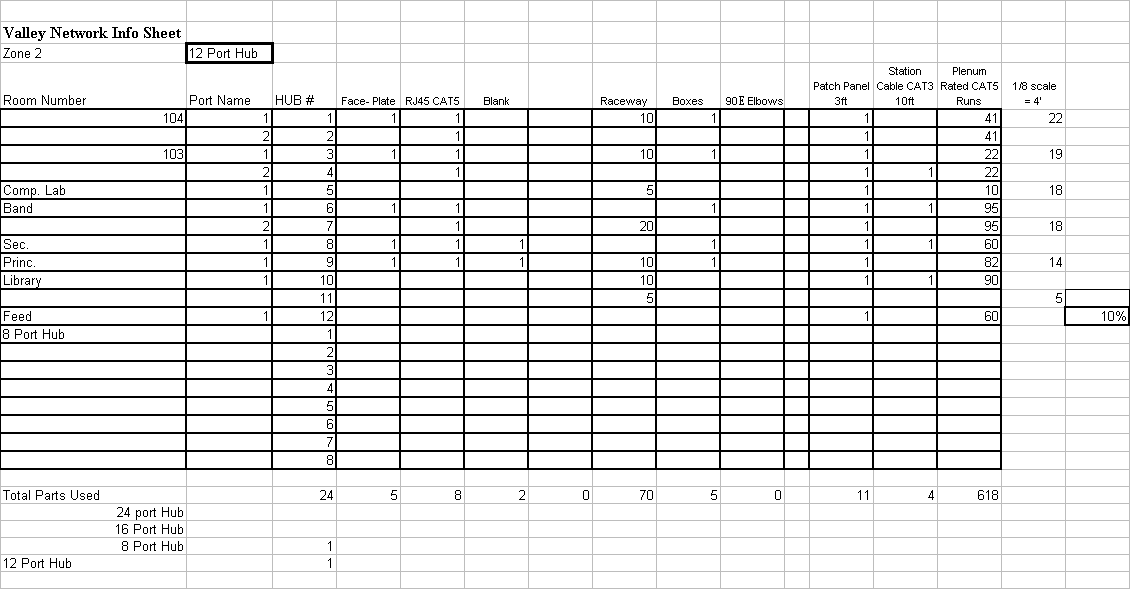

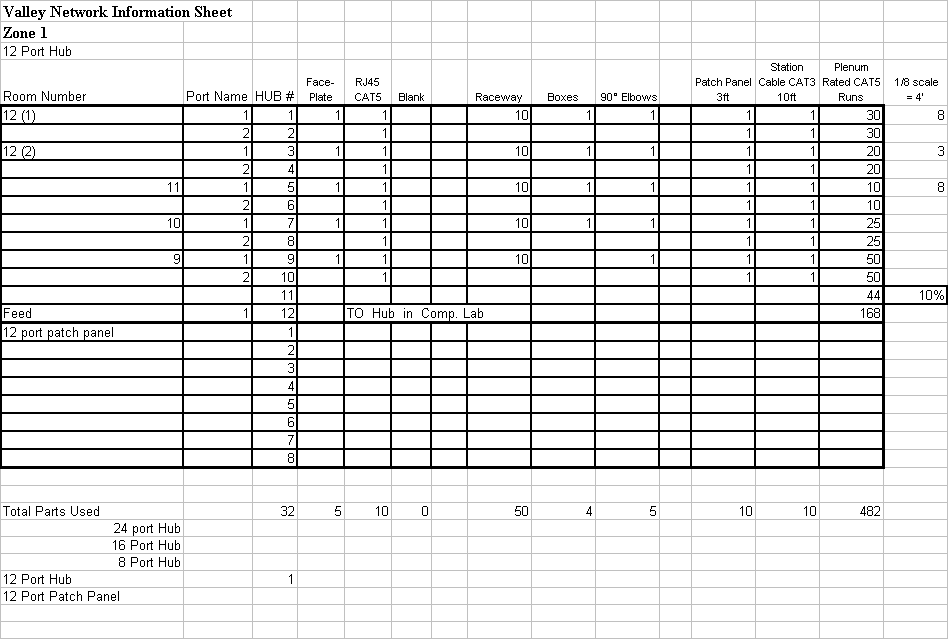

    Valley Middle School Wiring Diagram.


Here are other people who have been a big help.

    Wayne Summers.(Networks Instructor) Max Baca.(Network Manager at Highlands)

If you have any questions about my little page please send me a comment. Thanks!
