Hello everyone! I am a sophmore here at New Mexico Highlands University . Majoring in CIS (Computer Info. Systems) . I am the network coordinator for Paul D. Henry Elementary School. This is the first time that I have ever designed a network. I received a lot of help from Anne Sanders, who was the Network Director "Thanks!". It was a great learning experience, now I hope I get the opportunity to do it again in the future.
I would like to thank all the volunteers that assisted on Netday. THANKS A WHOLE BUNCH!

Pictures on Net Day.

Information on Paul D. Henry Network.

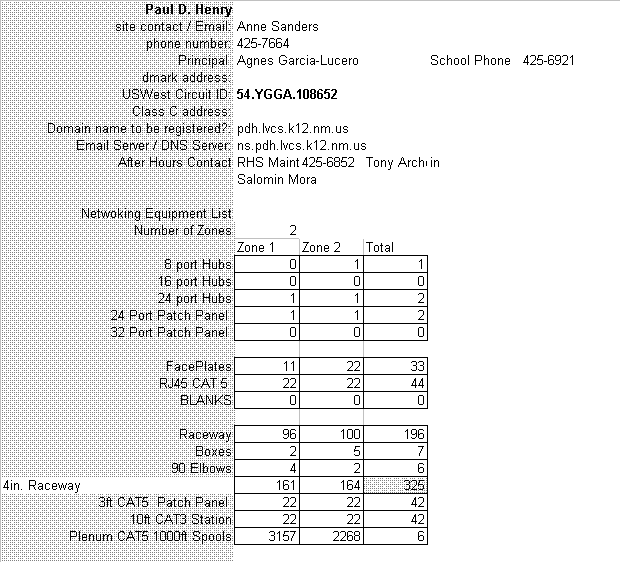

Paul D. Henry information sheet.

Paul D. Henry was a school that had only two zones, zones are used to divide the school into sections. By doing this we then can concentrate on these sections rather then the whole school as just one zone, this will cause less confusion and problems:

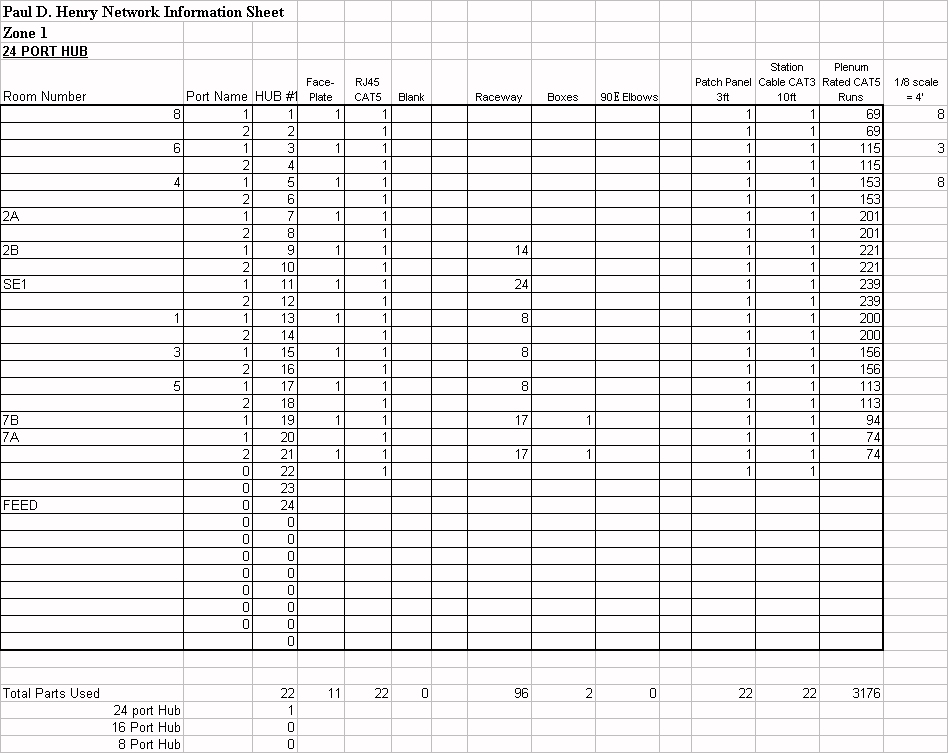

Zone 1

and

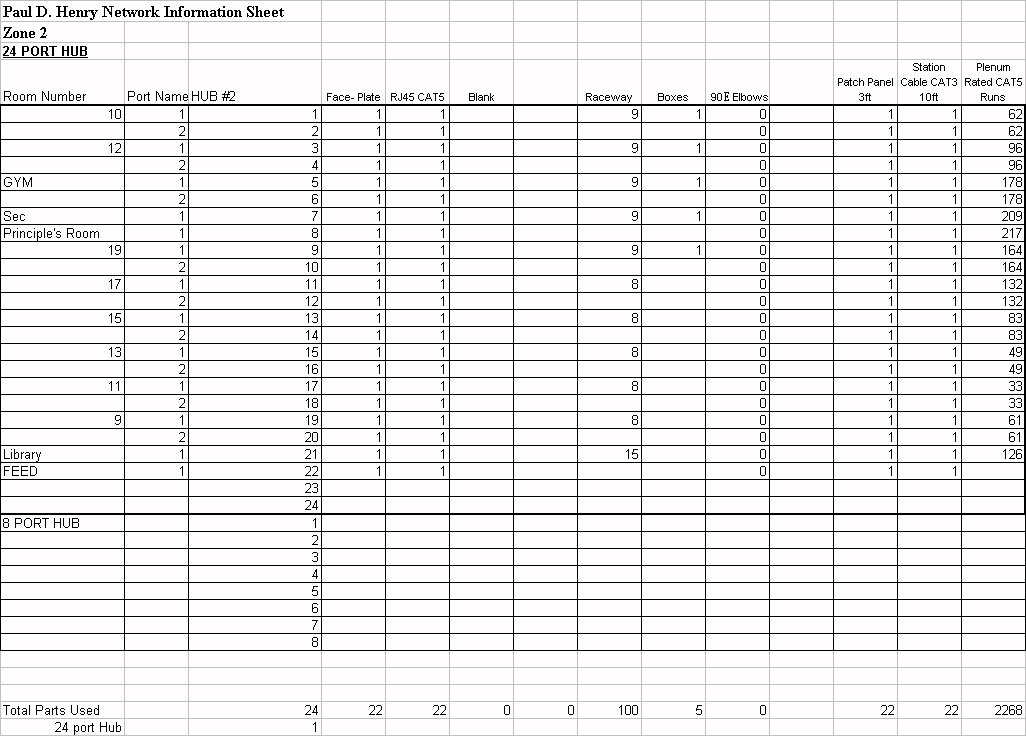

Zone 2

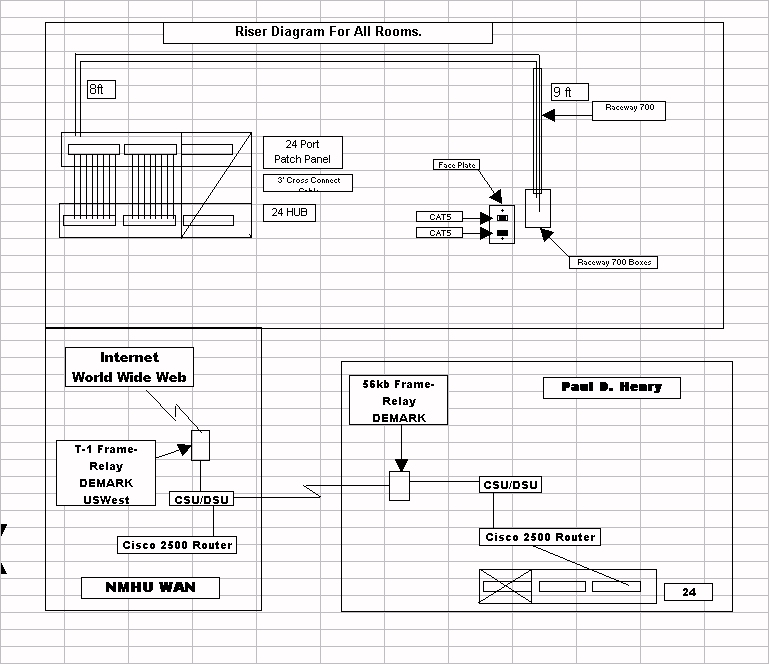

Paul D. Henry Elementary School Riser Diagram.

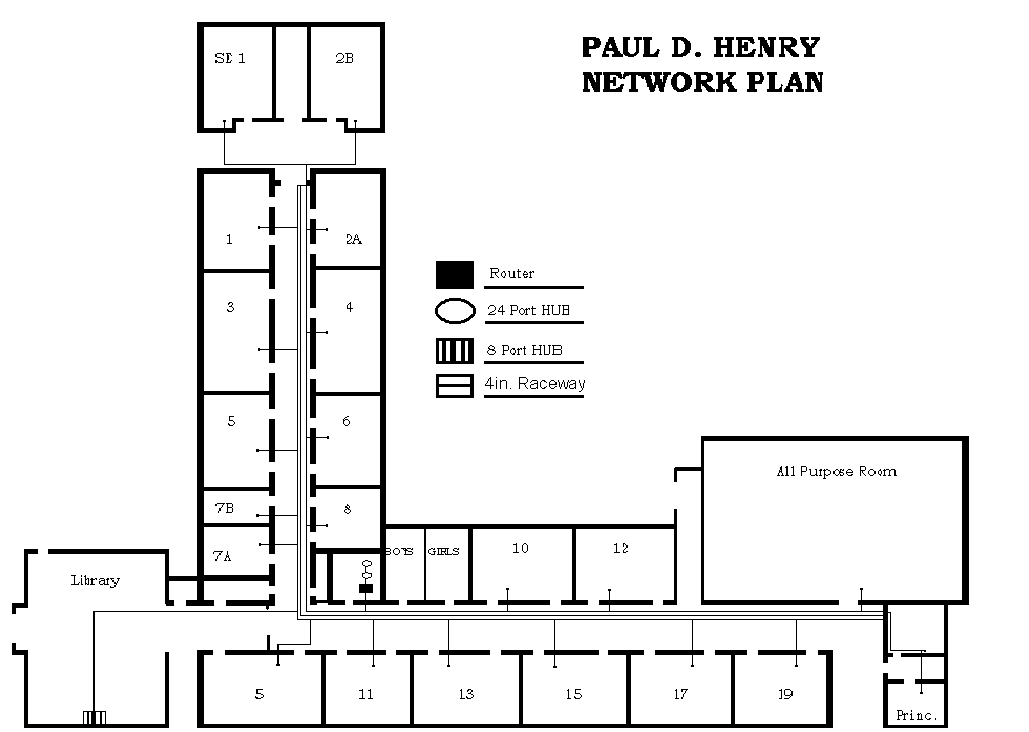

Paul D. Henry Elementary School Wiring Diagram.

Here are other people who have been a big help.

Wayne Summers.(Networks Instructor)

George W. Lucero.(Teacher at Memorial Middle School)

Max Baca.(Network Manager at Highlands)

---

If you have any questions about my little page please send me a comment. Thanks!
